Capturing Screen of PicoSystem

Using LcdTap-Pico2 Universal

External Deserializer is Required

The PicoSystem’s SPI is too fast for the LcdTap’s 4-Line SPI interface, so an external deserializer is required.

Connection

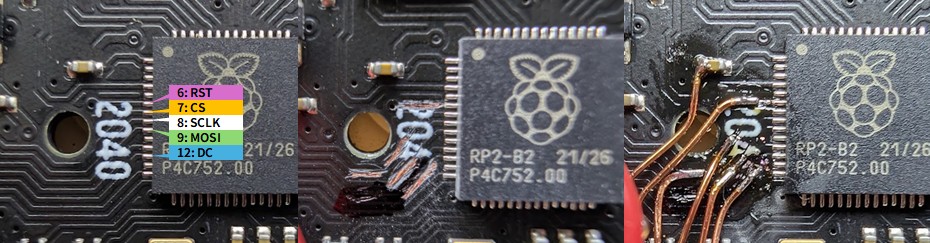

To access the SPI bus on PicoSystem, you need to scrape off the solder resist on the board and solder the wires.

Configuration

Load preset for PicoSystem.
