Capturing Screen of SOEK-01M

High voltage is present near the Geiger-Müller tube. Always turn off the power before working on it.

Using LcdTap-Pico2 Universal

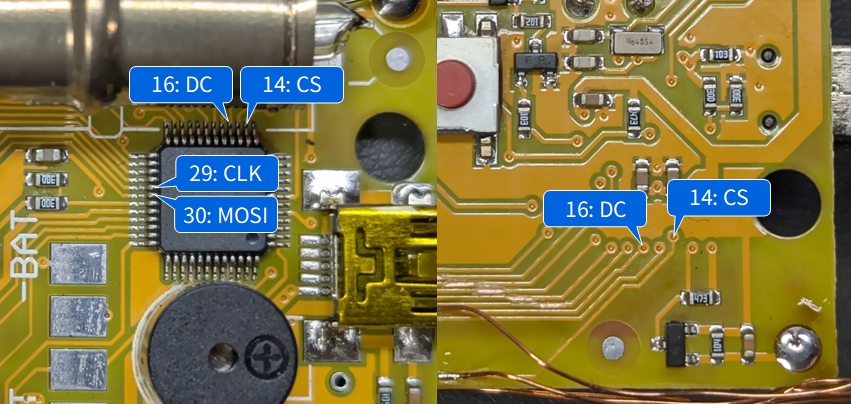

Connection

Configuration

  1. Load preset for ST7789.
  2. Set resolution to 128x160.
  3. Set Format Override to RGB666_LA.
  4. Set Output Rotation to 0°.
