Capturing Screen of Thumby
Using LcdTap-Pico2 Universal
Connection
Configuration
Load preset for Thumby.
Using LcdTap-Pico2 for SSD1306

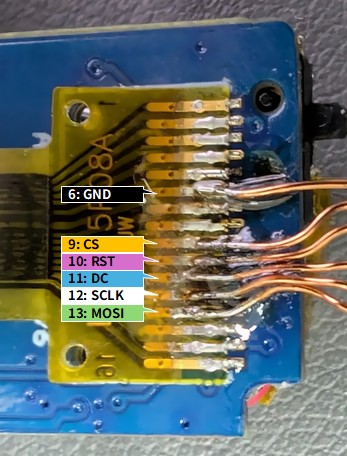

Connection
| LcdTap (Pico2) | Connection |
|---|---|
| GND | Thumby’s GND |
| GPIO0 (RST) | Thumby’s RST |
| GPIO1 (CS) | Thumby’s CS |
| GPIO2 (SCLK) | Thumby’s SCLK |
| GPIO3 (MOSI) | Thumby’s MOSI |
| GPIO4 (DC) | Thumby’s DC |
| GPIO20 (CFG_OUT_720P) | Select according to your display |
| GPIO21 (CFG_LCD_SIZE_SEL) | Open or 3V3 (128x64) |
| GPIO22 (CFG_IFACE_SEL) | GND (SPI) |
| GPIO27 (CFG_ROT[0]) | Open or 3V3 |
| GPIO28 (CFG_ROT[1]) | GND (Rotate 180°) |
